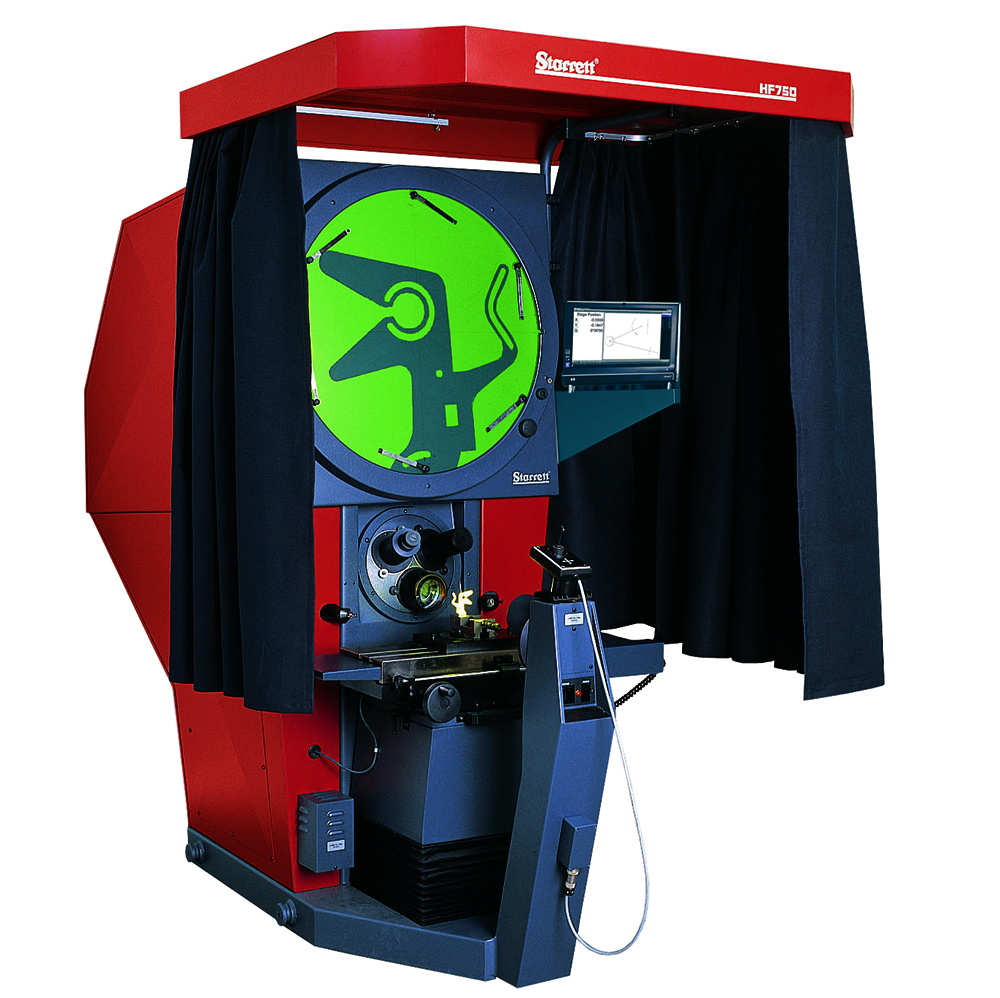

The Starrett HF750-221E 34711 Quadra-Chek 221E Edge Detection Horizontal Floorstanding Optical Comparator; 30″ Screen, 12″ / 300mm X 8 “/ 200mm Travel with Quadra-Chek 221 & Optical Edge Detectiontor has Quadra-Chek 221 Digital Readout, Optical Edge Detection and utilizes compact and precise digital readout for X,Y and Q measurements. Ideal for displaying linear and angular dimensions-capable of absolute/incremental measuring, “Q” axis reads out in Angular coordinates, Readout is equipped with RS232 port for communication to a PC, and printers can be setup via the USB Port. Includes the ability to measure 2D features such as diameters, radius, angle, lines and point features. Part skewing makes setting up quick and easy. Programs can be recorded to speed up the measurement of multiple parts. An optional Footswitch is available. The HF750 Optical Comparators have an extra large 30″ screen, 12″ X-axis (16″ optional) and 8″ Y-axis motorized travel (CNC control optional), lens turret with 3 lens capacity, Q-axis digital protractor with angular measurements to 1′ resolution, your choice of powerful Quadra-Chek or MetLogix software control systems, canopy and curtains. A time tested, cost effective, solution for non-contact measurement.
They are simple to use, yet have excellent capacity and performance to satisfy an exceptionally wide Range of dimensional inspection applications and complex measuring requirements. At the heart of the systems are precision optics, superb lighting and a highly accurate workstage which combine to ensure bright, sharp images and exceptional accuracy. Horizontal models work well with parts that need to be fixtured, held in a vice or on centers. *Lenses, Options and Accessories SOLD SEPERATELY. Please contact Customer Service to determine the necessary specifications for your needs.
- Includes Quadra-Check 221 Digital Readout Optical Edge Detection.
- Fully usable 30” diameter screen with overlay clips and electronic digital protractor reading to one minute of arc.
- Heavy-duty corrosion and scratchproof nickel-plated precision work stage with 25” x 9” top plate.
- Two-axis power drive via joystick and variable speed controls for fine adjust.
- 110 lb. load capacity with negligible deflection and 330 lb. maximum capacity.
- 12” horizontal travel.
- 8” vertical travel.
- 3” focus travel.
- 12V, 100W surface illumination.
- 24V, 150W profile illumination.
- Projection lens turret with three lens capacity (lenses not included).
- Turret mounted condenser system (lenses not included) and yellow/green filter with provision to mount further accessories for high and low magnification.
- Erect image.
- Full canopy and curtains.
- Measurement by means of a linear encoder (glass scale) on both X and Y axes.
- Optional fully automatic CNC control.
- *Lenses, Options and Accessories SOLD SEPERATELY. Please contact Customer Service to determine the necessary specifications for your needs.
